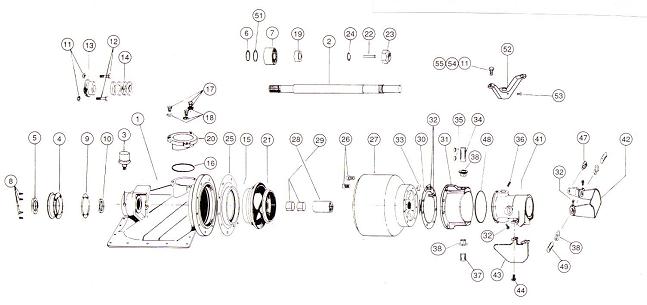

Dominator 12-S Replacement Parts
|
ITEM
|
DESCRIPTION
|
QTY.
|
PART NUMBER
|
1
2
3
4
5
|
Suction Piece
Pump Shaft
Jet Lube
Bearing Cap
Clipper Seal, Bearing Cap
|
1
1
1
1
1
|
1201
1202
1203
1204
1205
|
6
7
8
9
10
|
Snap Ring, Shaft
Thrust Bearing
Capscrew (5/16 x 1 1/4 Socket Hd.)
Gasket, Bearing Cap
Clipper Seal, Suction
|
1
1
4
1
1
|
1208
1209
1210
1211
1212
|
11
12
13
14
15
|
Locknut, Packing Follower (3/8 NF)
Capscrew, Packing Follower (3/8 NF x 2NF)
Packing Follower
Set of Packing Rings, Teflon
Wear Ring, Standard (Stainless Steel) |
2
2
1
4
1
|
1213
1214
1215
1216
1217
|
16
17
18
19
20
|
O-Ring, Hand Hole
Capscrew, Hand Hole (5/16 x 1 1/4)
Lockwasher, Hand Hole (5/16)
Sleeve, Shaft Seal
Hand Hole Cover
|
1
3
3
1
1 |
1218
1219
1220
1221
1222
|
21
|
Aluminum Impeller (Optional in Bronze)
AA Cut
A Cut
B Cut
C Cut
|
1
1
1
1
|
1223-AA
1223-A
1223-B
1223-C
|
22
23
24
|
D Cut
E Cut
Impeller Key
Impeller Locknut
Impeller Shim
*"As Requried" Available in size:.005,.010,.020,.040,.060
|
1
1
1
1
AR*
|
1223-D
1223-E
1225
1226
1228
|
25
26
27
28
29
|
Gasket, Bowl
Capscrew, Bowl (1/2 x 1 1/2)
Bowl Assembly (w/ Tail Bearing)
Sleeve, Bowl Bearing
Bowl Bearing, Glacier
|
1
8
1
1
2
|
1250
1251
1252
1255
1253
|
28, 29
30
31
32
33
|
Bowl Bearing, Assembly
Gasket, Nozzle Housing
Nozzle Housing
Capscrew, (5/16 x 1 Skt. Hd.)
Lockwasher (5/16)
|
1
1
1
11
11
|
1254
12101
12102
12103
1220 |
34
35
36
37
38
|
Tiller Pin
Woodruff Key, Tiller Pin
Set Screw (5/16 x 5/8 Sq. Hd. Set)
Lower Nozzle Pin
Nyliner Bearing (3/4)
|
1
2
1
1
4
|
12105
12106
12107
12108
12109
|
41
42
43
44
45
|
Nozzle
Reverse Bucket
Rudder, Standard
Capscrew, Rudder (1/4 x 3/4)
Lockwasher (1/4)
|
1
1
1
4
4
|
12151
12152
12153
12154
12155
|
46
47
48
49
51
|
Nyliner Bearing, Pivot Pin
Pivot Pin, Reverse Bucket
O-Ring, Nozzle Housing
Reverse Pin
Thrust Washer
|
1
1
1
2
1
|
12160
12158
12161
12164
1206
|
52
53
54
55
|
Tiller Arm
Setscrew (5/16 x 3/4 Sq. Hd. Set)
Hexnut (3/8 - 24)
Capscrew (3/8 1 1/2)
|
1
1
1
1
|
12156
12163
12283
12267
|
