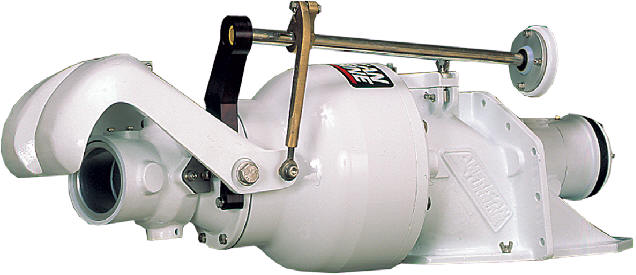

American Turbine SD-312 Turbine Information *

• For boats up to 6500 pounds all up weight.
• Engine and jet sit back as much as 8 inches farther back for more interior room.
• Completely sealed bearing housing water can't come in around the driveshaft.
• Bearing housing held on with six bolts instead of four to better support the rear of the engine.
• Completely sealed bearing housing water can’t come in around the driveshaft.
• A larger thrust bearing 35% more load capacity.
• Mechanical pump shaft seal never needs adjusting.
• Stronger 17-PH stainless steel pump shaft.
• Tapered wear ring for infinite adjustment.
• Heat-treated aluminum impeller standard.
• Secondary wear ring on the rear of the impeller to prevent bowl cavitaiton.
• Jet will accept the 10” impeller.
• Tandem lip seals on the bowl bearings, keeps grease in grit out.
• Fifth generation bowl, better flow than any other mixed flow pump.
• Nozzle inserts to fine tune your boat for optimum take-off, fuel economy and top speed.
• Standard with Best nozzle, available HTR ll.
• Highest static reverse of any mixed flow pump.
• Transom flange cast into suction housing, no need to make plates.
• Transom flange bolts to transom so the integrity of the transom is increased.
• Water off-takes are piped through the transom flange with a hose barb requiring less rigging time.
• Hand hole cover outside of transom for easier access.
• Will not over heat your engine at an idle.
