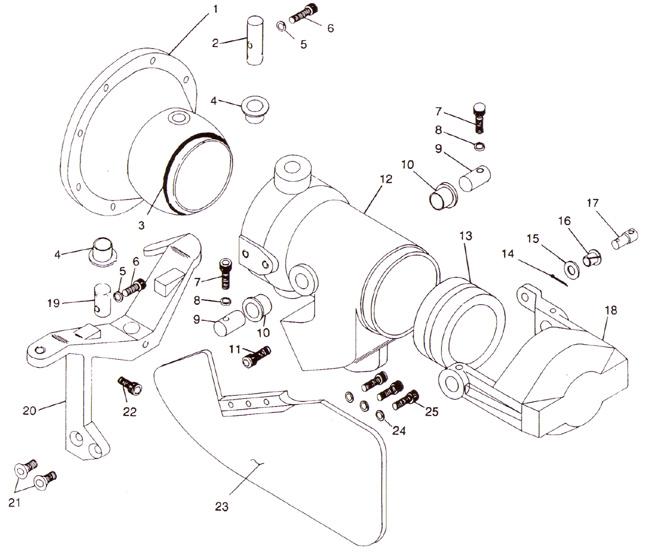

STEERING PARTS
Standard Steering
HTR
|
SYM |
DESCRIPTION
|
QTY. |
PART
NUMBER |
1
2
3
4
5 |
Short Snoot
Upper Steering Pin
O-Ring
Nylon Bearing
Lockwasher |
1
1
2
2
2 |
R-61-01
R-36-01
O-14-01
B-22-01
F-20-LW |
6
7
8
9
10 |
Socket Head Bolt 5/16 x 1
Socket Head Bolt 5/16 x 1
Lockwasher
Pin, Reverse Bucket
Nyliner Bearing |
2
2
2
2
2 |
F-52-CS
F-52-CS
F-20-LW
R-44-01
B-20-07 |
11
12
13
14
15 |
Socket head Bolt 5/16 x 1/2
Nozzle, HTR std.
Nozzle Insert
Cotter Pin
Flatwasher |
1
1
1
1
1 |
F-50-CS
R-17-01
R-??-??
F-10-CP
F-30-FW |
16
17
18
19
20 |
Nyliner Bearing, 3/8
Reverse Pivot
Reverse Bucket, HTR
Lower Steering Pin
Tiller Arm |
1
1
1
1
1 |
B-21-05
R-50-05
R-21-01
R-37-01
R-33-01 |
21
22
23
24
25 |
Flat Socket Head Bolt 5/16 x 1
Socket Head Bolt 5/16 x 1
Rudder, HTR
Lockwasher
Socket Head Bolt 5/16 x 1-1/4 |
2
2
1
3
3 |
F-22-MS
F-52-CS
R-26-01
F-20-LW
F-54-CS |
