Impeller / Wear Ring Installation Diagram

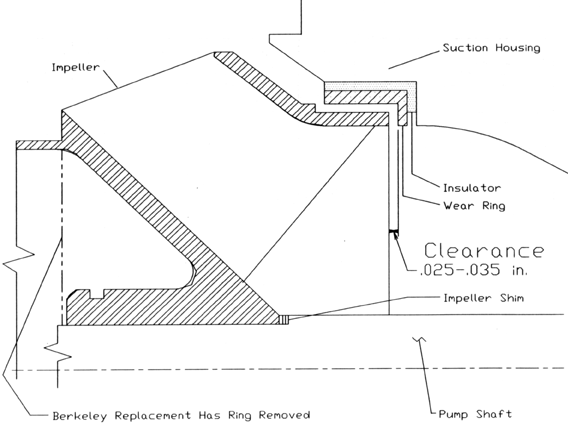

IMPELLER / WEAR RING
INSTALLATION DIAGRAM
USE IMPELLER SHIMS TO OBTAIN THE PROPER CLEARANCE
IMPORTANT: Wear Ring Must be Seated Square With-in .004" T.I.R.
The Axial clearance between the impeller and wear ring must be
.025-.035" (check several places around the wear ring)
Check after impeller nut has been tightened.
AMERICAN TURBINE WILL NOT BE RESPONSIBLE FOR
IMPROPERLY CLEARANCED IMPELLERS!! |
