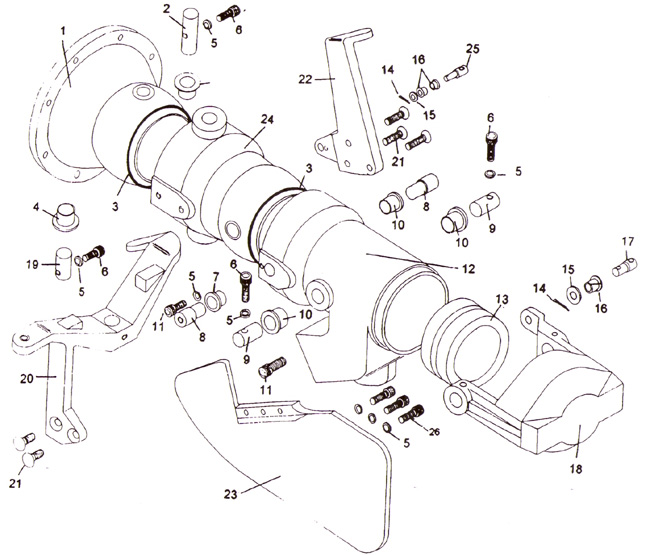

Steering Parts
Turbine Trim
|
SYM |
DESCRIPTION
|
QTY. |
PART
NUMBER |
1
2
3
4
5 |
Short Snoot
Upper Steering Pin
O-Ring
Nylon Bearing
Lockwasher |
1
1
2
2
8 |
R-61-01
R-36-01
O-14-01
B-22-01
F-20-LW |
6
7
8
9
10 |
Socket Head Bolt 5/16 x 1
Nylon Bearing
Up/Down Pin
Pin, Reverse Bucket
Nyliner Bearing |
4
2
2
2
2 |
F-52-CS
B-23-01
R-47-01
R-46-01
B-20-07 |
11
12
13
14
15 |
Socket head Bolt 5/16 x 1/2
Nozzle, HTR Turbine Trim
Nozzle Insert
Cotter Pin
Flatwasher |
2
1
1
2
2 |
F-50-CS
R-19-01
R-??-??
F-10-CP
F-30-FW |
16
17
18
19
20 |
Nyliner Bearing, 3/8
Reverse Pivot *
Reverse Bucket, HTR
Lower Steering Pin
Tiller Arm |
3
1
1
1
1 |
B-21-05
R-50-05 *
R-21-01
R-37-01
R-32-01 |
21
22
23
24
25 |
Flat Socket Head Bolt 5/16 x 1
Up/Down Lever
Rudder, HTR
Steering Nozzle, Turbine Trim
Hydraulic Pivot Pin |
5
1
1
1
1 |
F-22-MS
R-38-01
R-26-01
R-14-01
R-52-01 |
| 26
|
Socket Head Bolt 5/16 x 1-1/4
* Reverse Pivot (FW Jet) |
3
1 |
F-54-CS
R-51-08 |
